Shell Structure | Grasshopper Script + 3D Model
Stop wasting hours manually lofting and profiling complex concrete shell vaults.
$5.00
Master Lightweight Concrete Shells & Freeform Vaults. Generate Organic Structural Canopies in Seconds Without Rigid Modeling Constraints.
Let’s face it: trying to manually loft, smooth, and structural-profile complex double-curved concrete shell vaults or thin-shell canopies in Rhino is a frustrating, trial-and-error nightmare.
You spend days fighting awkward surface pinching, struggling with uneven edge transitions, and wrestling with heavy mesh files that crash your workstation when you try to calculate structural thicknesses.
This fully parametric Grasshopper script & 3D Rhino model of the Shell Structure ends the struggle instantly.
Whether you are designing fluid long-span auditoriums, exploring organic concrete shell typologies, preparing structural models for finite element analysis, or building an elite computational portfolio, this production-ready setup gives you total algorithmic mastery over thin-shell geometry.
What’s inside your digital download:

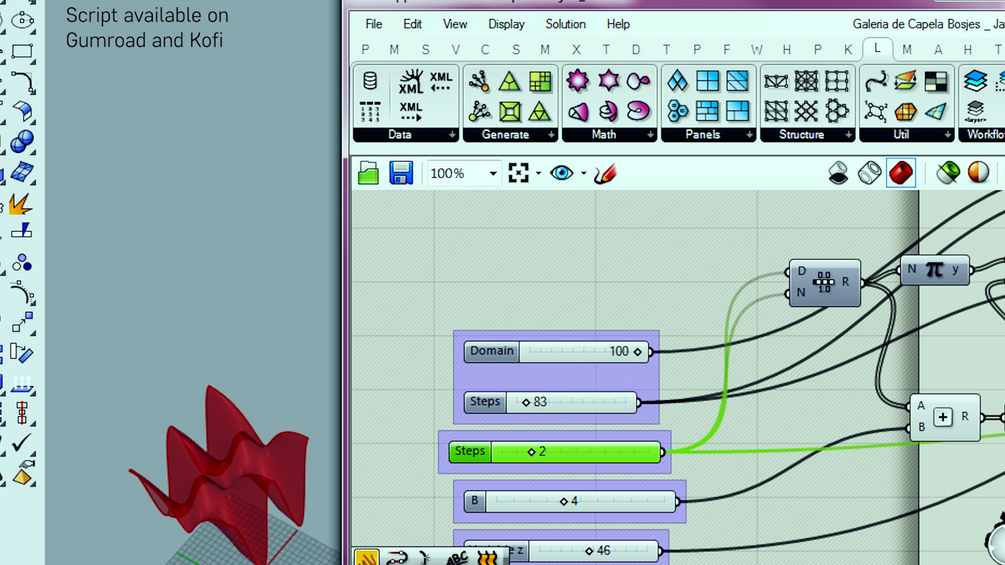

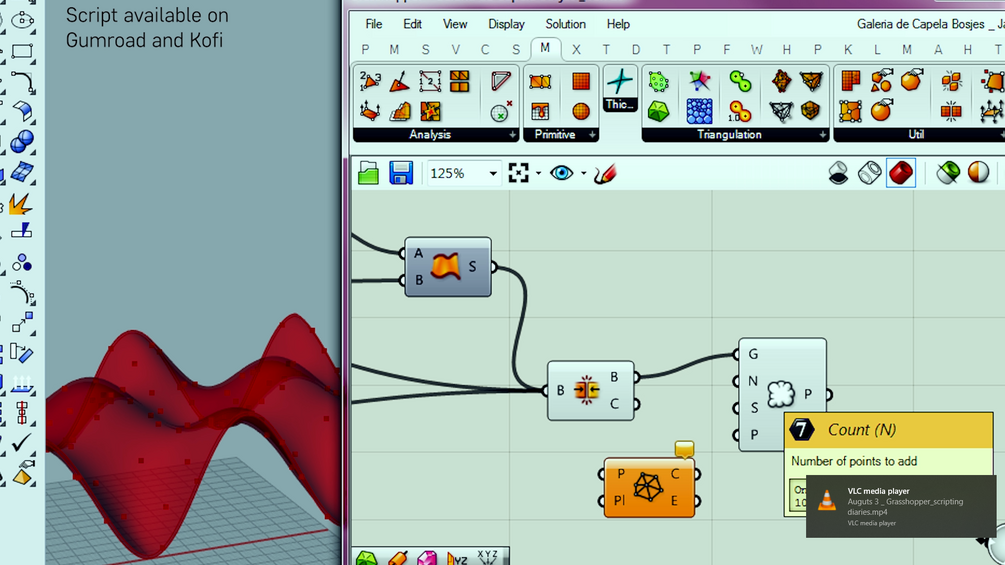

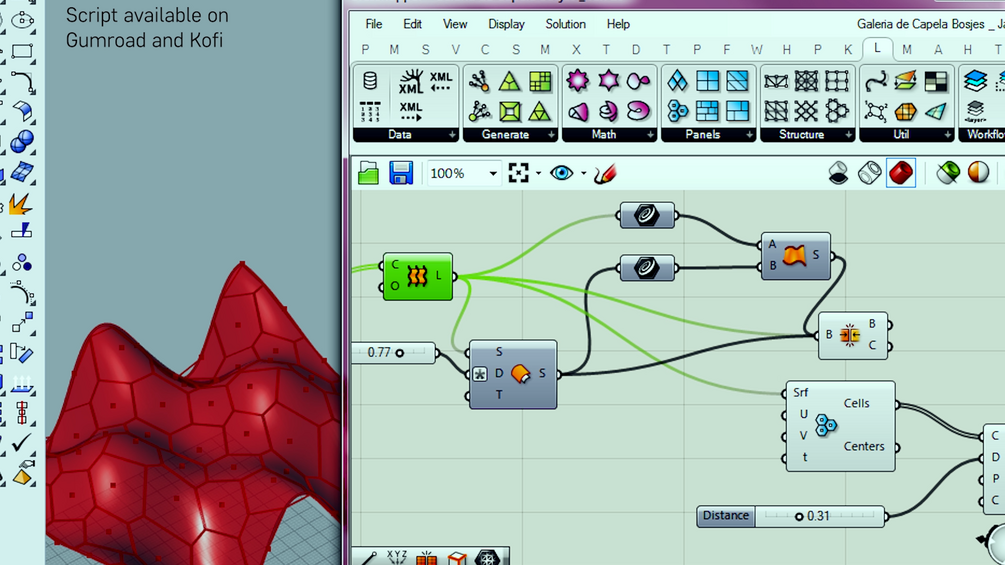

Fully Editable Parametric Grasshopper Script (.gh): Clean, organized, and color-coded. Control vault span, rise height, edge curvature curves, shell thickness offsets, and support column positions dynamically with simple sliders.
High-Precision 3D Rhino Model (.3dm): Clean layer hierarchy with smooth NURBS surfaces and watertight solid geometry—ready for immediate photorealistic rendering, structural analysis, or fabrication takeoffs.
Zero Plugin Headaches: Built purely with native Grasshopper components so you can open, tweak, and generate immediately without hunting down missing or outdated plugins.
Stop fighting with rigid surface modeling tools. Download the script, open Rhino, and generate breathtaking structural shell architecture today.
👉 [Download the Script & 3D Model Now]
